Energy Hub Midi Pro 30kWh-Victron-MP2-48/6K5, 250/100 MPPT

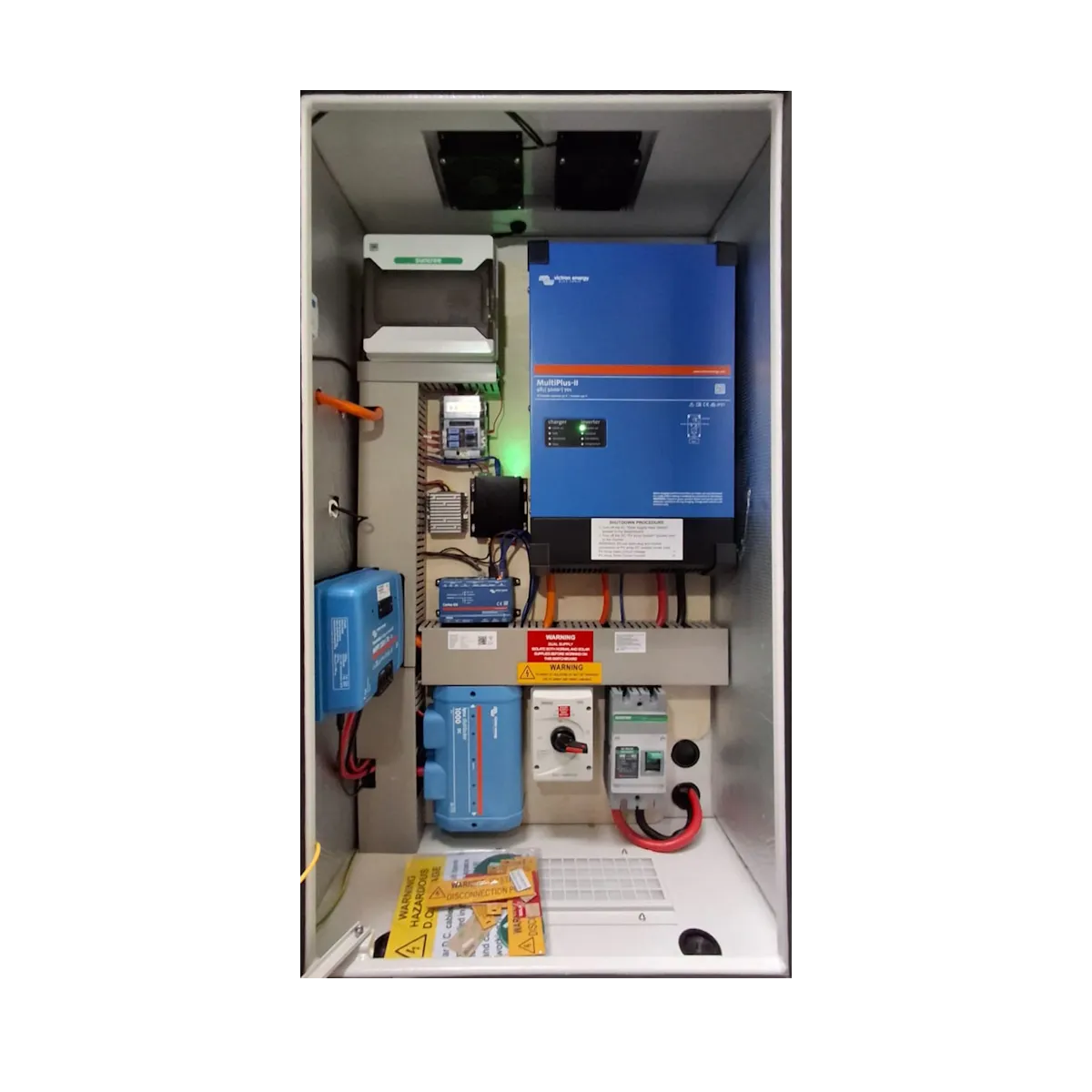

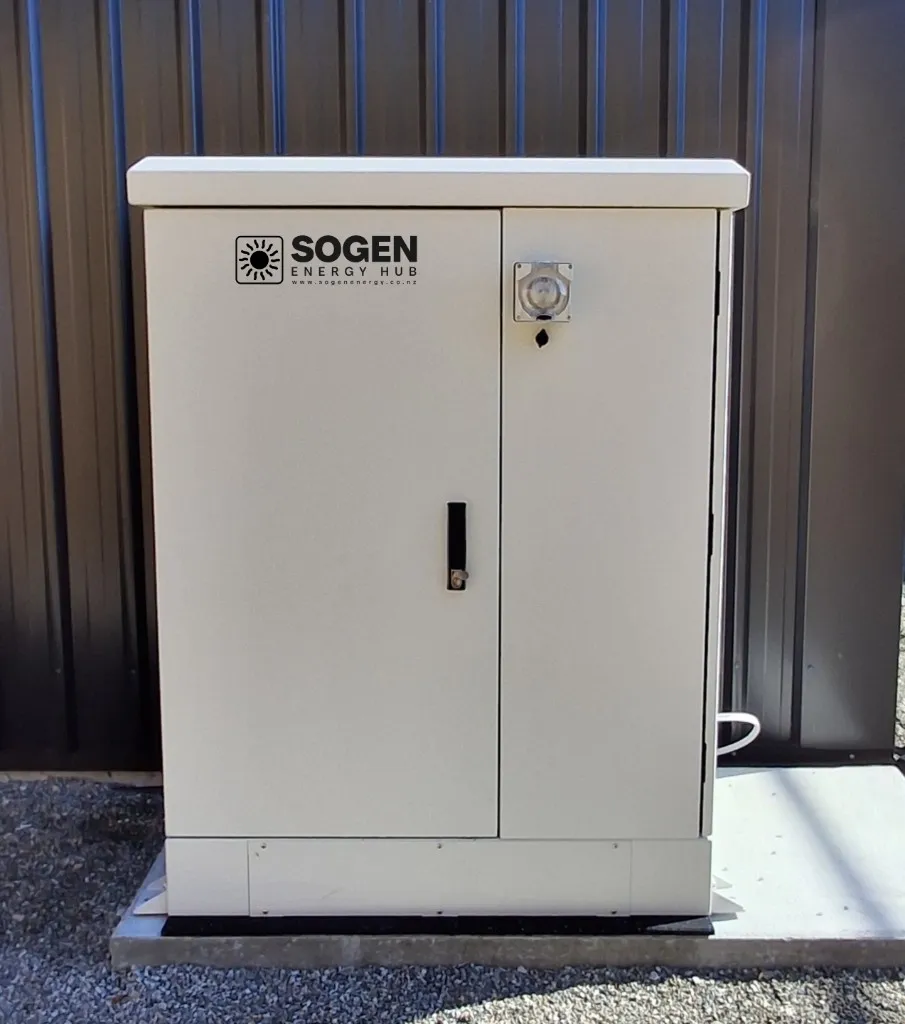

Energy Hub Midi Pro is Solagen’s latest-generation power system for both off-grid and grid-connected applications. Built around a Victron Multiplus 6500W inverter with remote monitopring and advanced generator controll using the Victron Cerbo GX.  The Energy Hub Pro it includes a 30kWh SOK LiFePO4 battery bank. Everything is housed in a durable, powder-coated, IP-rated aluminium cabinet for a clean, professional install. This unit is prewired ready for hard wiring to the grid/generator and loads.

Our new cabinets are able to house four 250/100 or one RS450/200 solar charger controllers.

Includes:

• Robust 3mm powder coated aluminium cabinet with 48V DC fans for cooling
• Victron Multi Plus II 48/6K5 inverter/charger
• Victron Smart Solar 250/100 MPPT Solar charge controller
• 6 x SOK 48V 100Ah batteries
• Teltonika Cellular modem with external antenna
• 4 Way Circuit breaker enclosure for 240v Electrical connections
• PV Isolator
• Main battery ciruit breaker/isolator
• All DC cabling, fusing and bus bars
• 32A PDL 56 Series Generator input and output
• 2 Wire Autostart connector
• Preconfigured and tested.
• Electrical Certification

Please contact us if you require a variation on this cabinet.

Options include:

• Additional power inlet
• Additiona power outlet
• External 12V 9A power output
• No external power connections
• Additional solar charge controllers
